XT27 SERIES

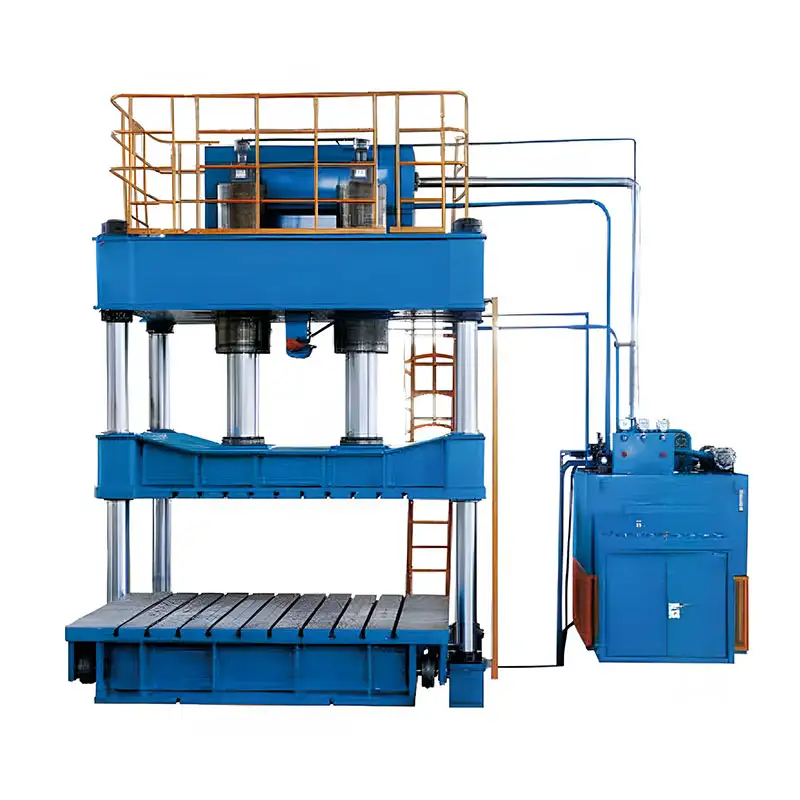

FOUR-COLUMN THIN PLATE STRESSING HYDRAULIC MACHINE.
keywords:
Category:
Hydraulic Presses
XT27 SERIES
Applications
- Fit for drawing, bending, forming, flanging, and other processes for both general parts and components and high-precision parts. Equipped with a buffering device, the machine may also be used for cutting and stamping. The machine is suitable for use in the following fields:
- Automotive parts: vehicle body panels, brake pads, oil tank, chassis, axle housing, bumper.
- Home appliances: washing machine parts, electric oven parts, TV components, refrigerator parts.
- Kitchen ware: sinks, pots, stainless steel products, other containers.
Features and characteristics
- Computer-optimized structure design, 4-column structure, simple, cost-effective, and practical.
- Cartridge valve integrated unit for the hydraulic control system, providing reliable, durable performance and less hydraulic shock, with shorter connection pipes and fewer leak points.
- Independent electrical control, with visual/sound alerts for convenient maintenance.
- Centralized button control system, with manual and semi-auto operation modes at the operator's discretion.
- Fixed-stroke forming process or fixed-pressure forming process can be selected through the control panel, with pressure-holding and time-delay functions.
- The operating force, no-load travel, low-speed movement, and travel range can be adjusted to meet technological requirements.
Technical Parameters
ltem | Unit | XT27-200 | XT27-315 | XT27-400 | XT27-500 | XT27-630 | XT27-630A | XT27-800 | XT27-800A | XT27-1000 | XT27-1250 | XT27-1600 | XT27-2000 | |
Rated Force | KN | 2000 | 3150 | 4000 | 5000 | 6300 | 6300 | 8000 | 8000 | 10000 | 12500 | 16000 | 20000 | |
Cushion Force | KN | 630 | 630 | 1250 | 2000 | 1250X2 | 1250X2 | 1600X2 | 1600X2 | 2000X2 | 2000X2 | 1600X3 | 1600X3 | |
Return Force | KN | 400 | 630 | 500 | 900 | 1000 | 1200 | 1000 | 1000 | 1350 | 1700 | 2700 | 2400 | |
Ram Stroke | mm | 700 | 800 | 800 | 900 | 900 | 900 | 1000 | 1200 | 1000 | 1300 | 1500 | 1600 | |
Cushion Stroke | mm | 250 | 300 | 300 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 500 | 500 | |
Opening Height | mm | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1800 | 1800 | 1800 | 1800 | 2000 | 2000 | |
Ram Speed
| Idle Stroke | mm/S | 130 | 110 | 130 | 120 | 130 | 140 | 150 | 150 | 130 | 150 | 120 | 130 |
Working | mm/S | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | 5-12 | |
Back Stroke | mm/S | 85 | 70 | 80 | 85 | 95 | 85 | 95 | 95 | 90 | 95 | 80 | 85 | |
Speed of Cushion | Upward | mm/S | 40 | 35 | 35 | 40 | 40 | 40 | 40 | 40 | 35 | 40 | 40 | 35 |
Back | mm/S | 90 | 80 | 80 | 90 | 90 | 90 | 90 | 90 | 80 | 90 | 90 | 80 | |
Bolster Surface Size
| L.R. | mm | 1000 | 1250 | 1250 | 1400 | 1600 | 2500 | 2200 | 3500 | 2500 | 3500 | 4000 | 4600 |
F.B | mm | 900 | 1120 | 1250 | 1400 | 1600 | 1800 | 1600 | 2000 | 1800 | 2000 | 2600 | 2600 | |
Cushion Area | L.R. | mm | 600 | 650 | 650 | 800 | 1120 | 2000 | 1500 | 2700 | 2000 | 2700 | 3200 | 3820 |
F.B | mm | 600 | 650 | 650 | 800 | 1120 | 1260 | 1000 | 1400 | 1260 | 1400 | 2000 | 2020 | |
Overall Dimension
| L.R. | mm | 3100 | 3100 | 3150 | 4150 | 5100 | 5800 | 5200 | 6500 | 5800 | 6500 | 5800 | 6500 |
F.B. | mm | 1350 | 2100 | 2300 | 2600 | 2600 | 2600 | 2800 | 2800 | 3000 | 3200 | 3500 | 3600 | |
Above Ground | mm | 4000 | 4800 | 5100 | 5350 | 5600 | 6200 | 6400 | 7000 | 6800 | 7300 | 8000 | 8600 | |
Power of Motor | KW | 15 | 22 | 22 | 2X18.5 | 2X22 | 2X22 | 2X30 | 2X30 | 2X45 | 2X55 | 145 | 165 | |
