XT28 SERIES

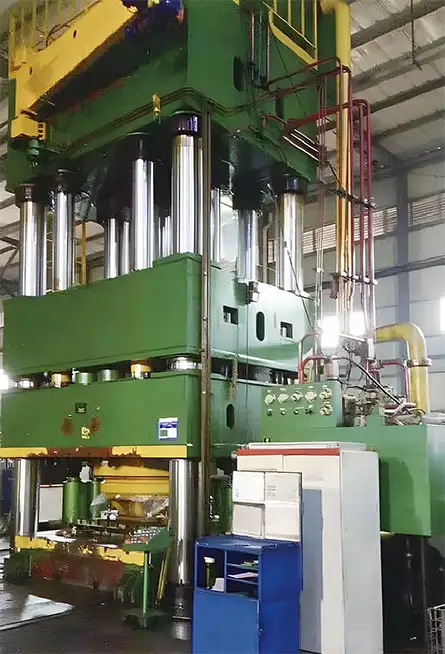

DOUBLE ACTING STRESSING HYDRAULIC MACHINE
keywords:
Category:
Hydraulic Presses
XT27 SERIES
Description
- This series is specifically designed for metal-plate drawing and pressing applications. The machines feature two frame structure options:
- Four-beam four-column construction (Model XT28)
- Frame-type double-slide configuration (Model XT28K)
- The dual slides can operate independently or synchronously to accommodate diverse production requirements. Equipped with an advanced hydraulic system and independent electro-hydraulic drive, these machines offer three operation modes through centralized push-button control: position adjustment, manual, and semi-automatic cycles.
Technical Parameters
ltem | Unit | XT28- 100/160 | XT28-160/250 | XT28- 200/315 | XT28- 400/630 | XT28- 500/800 | XT28- 630/1000 | ||
Rated Force | KN | 1600 | 2500 | 3150 | 6300 | 8000 | 10000 | ||
Drawing Force | KN | 1000 | 1600 | 2000 | 4000 | 5000 | 6300 | ||
Blank holder Force | KN | 150X4 | 225X4 | 288X4 | 630X4 | 800X4 | 1000X4 | ||
Eiection Force | KN | 200 | 300 | 400 | 630 | 1000 | 1250 | ||
Return Force for Drawing | KN | 165 | 210 | 240 | 500 | 900 | 850 | ||
Blank Holding Slide Return Force | KN | 29X4 | 41X4 | 66X4 | 134X4 | 150X4 | 240X4 | ||
Max Pressure of Liquid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | ||
Central Hold Size of Blank Holding Slide | mm | φ350 | φ450 | φ550 | 800X800 | 1400X800 | 1600X1000 | ||
Max Opening Height of Drawing Slide | mm | 900 | 1100 | 1250 | 1500 | 1600 | 1800 | ||
Max Opening Height of Blank Holding Slide | mm | 650 | 800 | 900 | 1050 | 1100 | 1250 | ||
Max Stroke of Drawing Slide | mm | 500 | 560 | 710 | 800 | 800 | 900 | ||
Max Stroke of Blank Holding Slide | mm | 500 | 560 | 710 | 800 | 800 | 900 | ||
Ejection Cylinder Slide | mm | 200 | 200 | 250 | 350 | 350 | 400 | ||
Effective Size of Drawing Slide | L-R | mm | 800 | 1120 | 1200 | 1600 | 2200 | 2500 | |
F-B | mm | 800 | 1000 | 1200 | 1600 | 1600 | 1800 | ||
Effective Size of Blank Holding | L-R | mm | 800 | 1120 | 1200 | 1600 | 2200 | 2500 | |
F-B | mm | 800 | 1000 | 1200 | 1600 | 1600 | 1800 | ||
Drawing slide speed | ldle stroke | mm/s | 80 | 100 | 120 | 120 | 130 | 150 | |
Pressing | mm/s | 8-20 | 8-20 | 8-20 | 5-12 | 7-15 | 7-15 | ||
Return | mm/s | 120 | 140 | 150 | 85 | 80 | 105 | ||
Blank Holding Slide Speed | ldle Stroke | mm/s | 70 | 80 | 90 | 100 | 110 | 130 | |
Pressing | mm/s | 16-40 | 15-35 | 15-35 | 8-20 | 9-23 | 9-23 | ||
Return | mm/s | 170 | 170 | 135 | 90 | 120 | 95 | ||
Table Size | L-R | mm | 800 | 1120 | 1200 | 1600 | 2200 | 2500 | |
F-B | mm | 800 | 1000 | 1200 | 1600 | 1600 | 1800 | ||
Over All Dimensions of the Machine | L-R | mm | 2700 | 3200 | 3600 | 4100 | 4800 | 5300 | |
F-B | mm | 1400 | 1500 | 1700 | 1800 | 2000 | 2200 | ||
Height Above Floor | mm | 3300 | 3900 | 4300 | 4800 | 5200 | 5700 | ||
| Total Motor power | kw | 5.5+5.5+3 | 7.5+7.5+3 | 15+7.5+4 | 15+15+4 | 22+22+7.5 | 30+30+7.5 | ||
