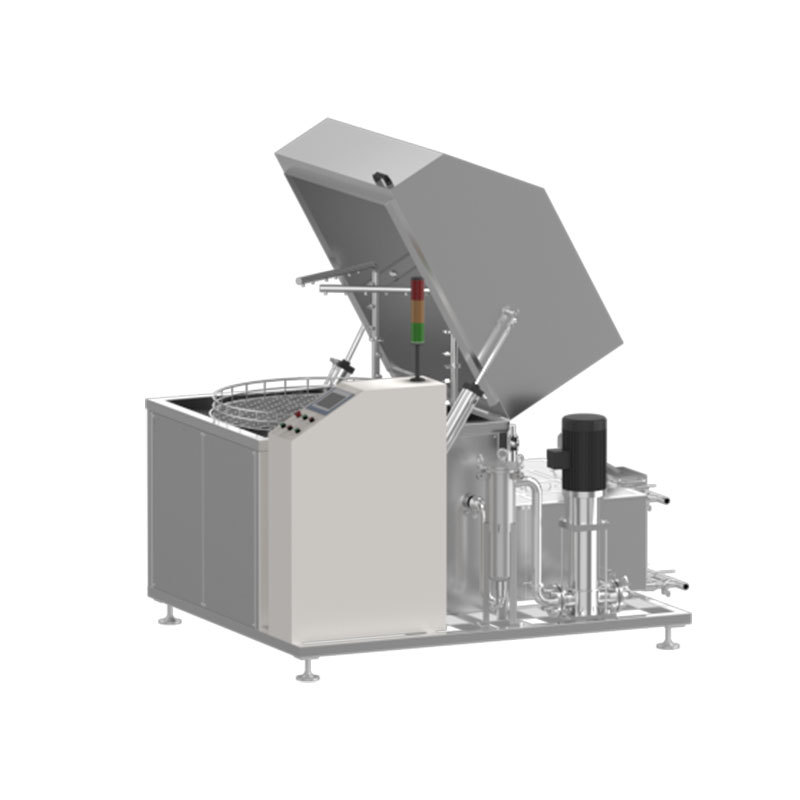

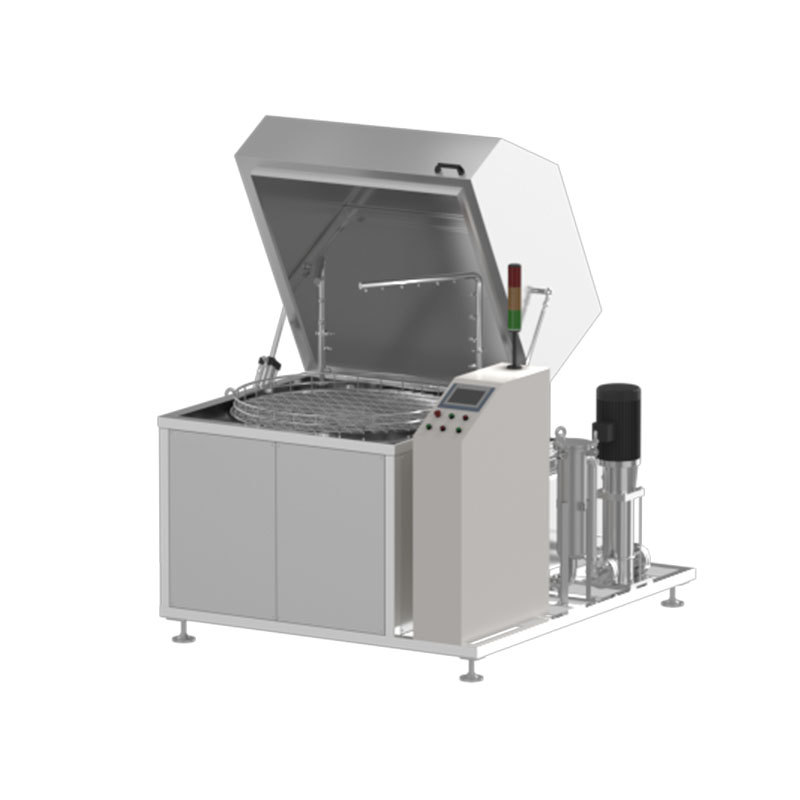

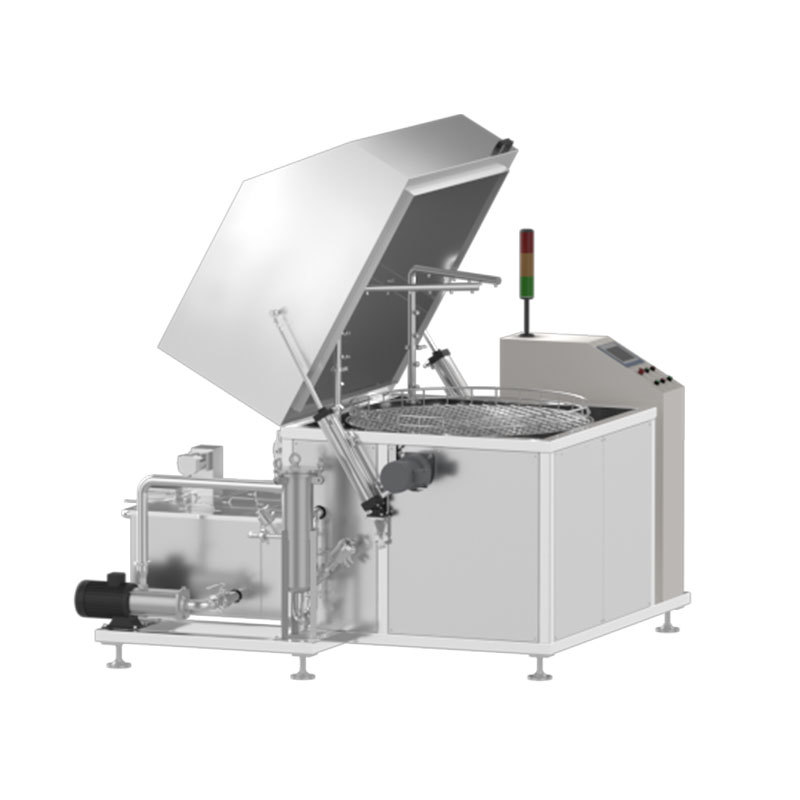

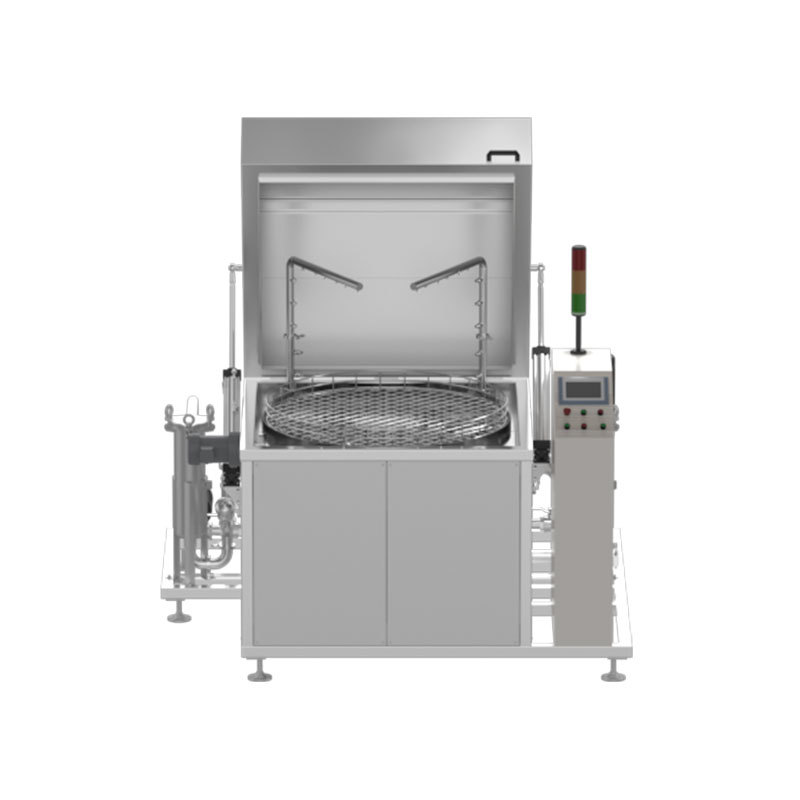

Simplex Rotary Spray Cleaning Machine
The Simplex Rotary Spray Cleaning Machine is a compact, fully automated system designed for high-efficiency 360° cleaning of engine components, castings, and automotive parts, offering robust spray washing, rinsing, and optional drying in a single unit, with light- and heavy-duty models tailored for small-batch processing of varied workpiece sizes.
keywords:
Category:
Cleaning Machines
Simplex Rotary Spray Cleaning Machine
Lightweight Parameter List | ||||
Model | XT-Q-500 | XT-Q-800 | XT-Q-1000 | XT-Q-1200 |
Cleaning Basket Diameter | φ500×400mm | φ800×500mm | φ1000×500mm | φ1200×600mm |
Equipment Dimensions | 1340×1690×1700mm | 1850×1765×2100mm | 2050×2000×2200mm | 2250×2200×2400mm |
Load Capacity | 50Kg | 100Kg | 200Kg | 300Kg |
Tank Volume | 250L | 450L | 700L | 900L |
Cleaning Spray Pump Pressure | 0.4MPa | 0.8MPa | 0.8MPa | 0.8MPa |
Rotation Speed | 2-10r/min | 2-10r/min | 2-10r/min | 2-10r/min |
Operating Height | 980mm | 980mm | 980mm | 980mm |
Heating Power | 20kW | 20kW | 20kW | 30kW |
Total Power of Main Machine | 26kW | 26kW | 26kW | 37kW |
Scope of Application
● Ideal for cleaning processes of cylinder blocks, cylinder heads, engines, castings, as well as automotive and motorcycle components.
● The light-duty model is optimized for small-batch cleaning of multi-species parts, whereas the heavy-duty model is specifically designed for small-batch cleaning of large, heavy workpieces.
● Primarily used for removing surface oils, metal chips, dust, and other contaminants from parts.
● 360° comprehensive cleaning ensures full coverage with no blind spots, enabling fast and efficient cleaning.
● The cleaning process employs continuous spray washing, delivering robust cleaning and flushing power, while maintaining a compact footprint that integrates multiple cleaning stages into a single system.
● The process flow includes feeding → spray cleaning → spray rinsing → discharging, with optional enhancements such as air-blasting and hot air drying.
