OPEN SINGLE POINT HIGH PRECISION HEAVY DUTY PRESS 15T-400Tons
keywords:
Category:
OPEN SINGLE POINT HIGH PRECISION HEAVY DUTY PRESS
Unique Performance and Characteristics
● High rigidity and heavy structure design: The use of dynamic mechanical analysis and structural simulation and optimization, the heavy-duty design with over 25% capacity, the best and perfect combination of high rigidity structures.
● High precision and stability: Adopting international leading welding, processing and other manufacturing processes, the best rigid distribution and transmission structure combination ensure high strength, wear resistance and stability.
● Safe and guaranteed: adopting dual-loop safety protection design, and equipped with international cutting-edge brand electrical components.
● Durability: It has self-detection, alarm and self-protection functions, which greatly improves the service life of the machine tool.
● Intelligence and automation: According to the actual needs of customers, we have developed a unique automatic program control system and is equipped with a powerful microcomputer operating system to provide guarantee for automation.
● Environmental protection and energy saving: The best rigid combination has low friction loss and low noise, and is equipped with high torque environmental protection,energy saving motor and frequency conversion technology.
Standard Configuration
Taiwan Shihlin Frequency converter | Blowing device |
Taiwan TECO Main Motor | Air Interface |
Japan Showa Hydraulic overload protection | Forward and reverse mechanism of main motor |
Taiwan ISHAN Automatic Lubrication System | Lockable switch |
Taiwan Delta Microcomputer operating system | Heavy Duty shock-proof Pin |
Japan Fuji Two-handed operation | Microcomputer operating system |
France Schneider Electrical Element | Pre-cutting device |
Japan TOYOOK Brake Double Valve | Presetting device |
Taiwan AIRTAC Pneumatic Element | Production counting function |
Double Circuit Safety Protection | Detection device for material misdelivery |
Automatic reserved port | Pressure detection function |
Digital mode high display instrument | Mould lamp |
Electronic Cam switch | Repair Tools and tool kit |
Travel Angle indicator | Instruction Manual |
Feed Shaft End |
|
Optional Configuration
● Air-pressure type die cushion device
● Upper slide feeding device
● Quick-change die
● Mould lifter, mould shifting arm, mould clamping device
● Wet Clutch
● Photoelectric protection device
● Mobile operating platform
● Feeding Machine
● Leveling machine
● Material Rack
● Three-in-one feeder
● German SERVO control system
● Industrial control system for Internet of things
Specifications

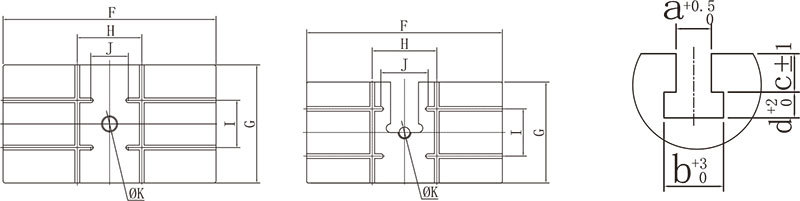

Workbench
Get off the table
| Model | A | B |
| a | 18 | 22 |
| b | 30 | 37 |
| c | 18 | 24 |
| d | 12 | 16 |
| Remark：A: DPI-15~45; B: DPI-60~400; | ||

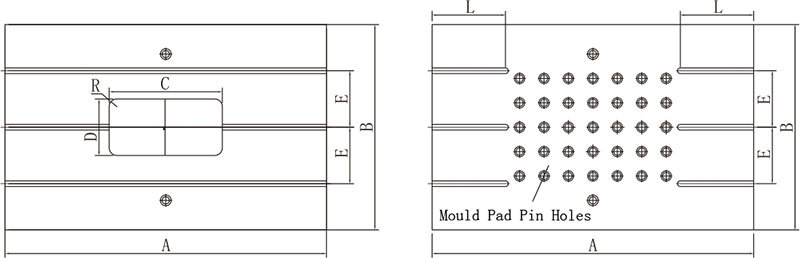

Workbench Parameters
Specifi | XTPI-15 | XTPI-25 | XTPI-35 | XTPI-45 | XTPI-60 | XTPI-80 | XTPI-110 | XTPI-160 | XTPI-200 | XTPI-260 | XTPI-300 | XTPI-400 |
A | 680 | 680 | 800 | 850 | 900 | 1000 | 1150 | 1250 | 1400 | 1500 | 1600 | 1700 |
B | 300 | 300 | 400 | 440 | 500 | 550 | 600 | 800 | 820 | 840 | 900 | 950 |
C | 240 | 240 | 280 | 300 | 320 | 360 | 400 | 440 | 480 | 520 | 560 | 600 |
D | 120 | 120 | 140 | 150 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 |
E | 90 | 90 | 120 | 120 | 150 | 150 | 160 | 220 | 280 | 280 | 290 | 320 |
F | 470 | 470 | 520 | 560 | 700 | 770 | 910 | 990 | 1130 | 1250 | 1350 | 1400 |
G | 250 | 250 | 285 | 340 | 400 | 420 | 470 | 550 | 630 | 700 | 750 | 770 |
H | 一 | 一 | 一 | 180 | 220 | 300 | 300 | 300 | 420 | 420 | 420 | 450 |
I | 80 | 80 | 100 | 120 | 160 | 180 | 220 | 220 | 300 | 300 | 300 | 300 |
J | 150 | 150 | 160 | 210 | 220 | 220 | 220 | 175 | 200 | 200 | 200 | 200 |
K | 38.1 | 38.1 | 38.1 | 38.1 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 65 |
L | 一 | 一 | 一 | 一 | 257.5 | 257.5 | 285 | 285 | 335 | 335 | 370 | 370 |
R | 20 | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 40 | 40 | 40 | 40 |
