CLOSED TWO-POINT HIGH-PRECISION HEAVY PRESS 160T-630Tons
keywords:
Category:
CLOSED TWO-POINT HIGH-PRECISION HEAVY PRESS
Unique Performance and Characteristics
● High-rigidity heavy-duty closed structure design: It adopts dynamic mechanical analysis and structural simulation and optimization, the heavy-duty design with over 25% capacity, the best and perfect combination of high-rigidity structure.
● The design of the double crankshaft force structure, the internal design of lateral force cancellation, the center of gravity optimization, etc., have super strong anti-eccentric load capacity.
● Super strong force structure: adopting multi-stage precision transmission technology, the transmission precision is more stable, the precision is higher, and the force structure is stronger.
● High precision and stability: Adopting international leading welding, processing and other manufacturing processes, the best rigid distribution and transmission structure combination ensure high strength, wear resistance and stability.
● Safe and guaranteed: adopting dual-loop safety protection design, and equipped with international cutting-edge brand electrical components.
● Durability: It has self-detection, alarm and self-protection functions, which greatly improves the service life of the machine tool.
● Intelligence and automation: According to the actual needs of customers, we have developed a unique automatic program control system and is equipped with a powerful microcomputer operating system to provide guarantee for automation.
● Environmental protection and energy saving: The best rigid combination has low friction loss and low noise, and is equipped with high torque environmental protection, energy saving motor and frequency conversion technology.
Specifications

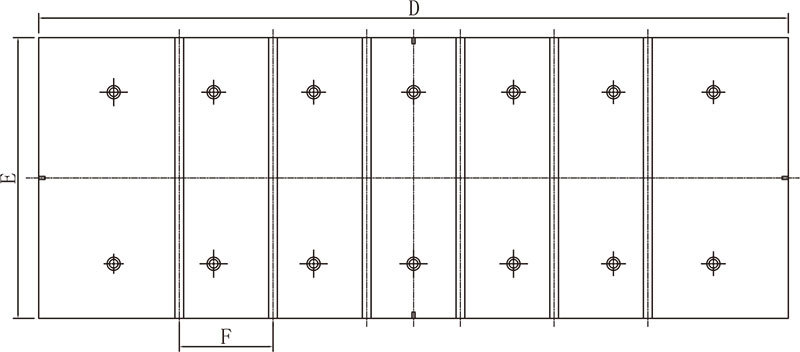

Workbench

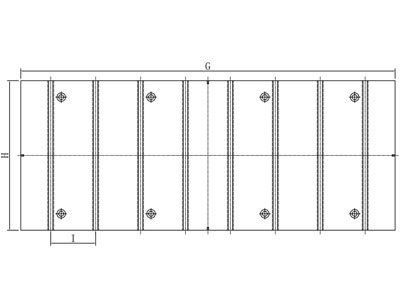

Get off the table

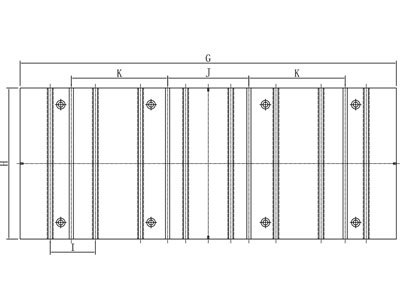

Worktable II

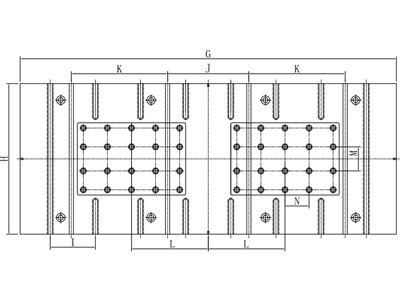

Worktable III
(with Die Lifter, U-shaped Slot)

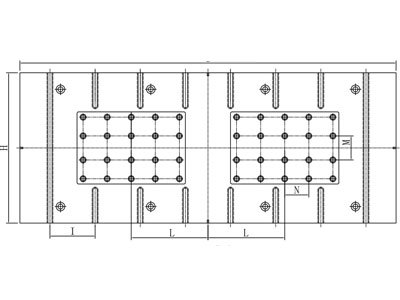

Worktable IV
(with Die Lifter, U-shaped Slot)
Mobile console | Independent electric control box |
Taiwan Shihlin inverter | Blowing device |
Taiwan TECO main motor | Air source interface |
Japan SHOWA hydraulic overload protection device | Main motor positive and negative device. |
Taiwan ISHAN automatic lubrication system | Attached toggle switch |
Taiwan Delta Microcomputer Operating System. | Heavy shockproof foot |
Japanese FUJI two-hand operation | Microcomputer operating system |
French Schneider electrical components | Pre-cut function device |
Japan TOYOOK brake attached to detect the double valve | Pre-break function device |
Taiwan AirTAC pneumatic components | Production counting function |
Dual loop safety protection | Material misfeed detection device |
Automated reservation port | Pressure detection function |
Digital module display | Mold illumination |
Electronic cam switch | Repair tools and toolbox |
Stroke angle indicating device | user's Guide |
Optional configuration
● Air-pressure type die cushion device
● Upper slide feeding device
● Quick-change die
● Mould lifter, mould shifting arm, mould clamping device
● Wet Clutch
● Photoelectric protection device
● Feeding Machine
● Leveling machine
● Material Rack
● Three-in-one feeder
● German SERVO control system
● Industrial control system for Internet of things
Workbench Parameters
Specification |
| XTTH-160 | XTTH-200 | XTTH-250 | XTTH-300 | XTTH-400 | XTTH-400B |
Upper | D | 1400 | 1600 | 1850 | 2400 | 2700 | 3000 |
E | 650 | 750 | 900 | 900 | 1000 | 1000 | |
T-Slot Type | A | B | B | B | B | B | |
Number of T-Slots | 4 | 6 | 6 | 6 | 6 | 8 | |
F | 250 | 250 | 250 | 300 | 300 | 300 | |
Lower | G | 1800 | 2200 | 2500 | 2500 | 2700 | 3200 |
H | 760 | 940 | 1000 | 1000 | 1100 | 1100 | |
T-Slot Type | A | B | B | B | B | B | |
Number of T-Slots | 6 | 8 | 8 | 8 | 8 | 10 | |
I | 250 | 250 | 300 | 300 | 300 | 300 | |
J | 530 | 520 | 540 | 540 | 700 | 1200 | |
K | 450 | 710 | 640 | 640 | 600 | 600 | |
L | 415 | 455 | 510 | 510 | 510 | 510 | |
M | 75 | 75 | 100 | 100 | 100 | 100 | |
N | 75 | 75 | 100 | 100 | 100 | 100 |
