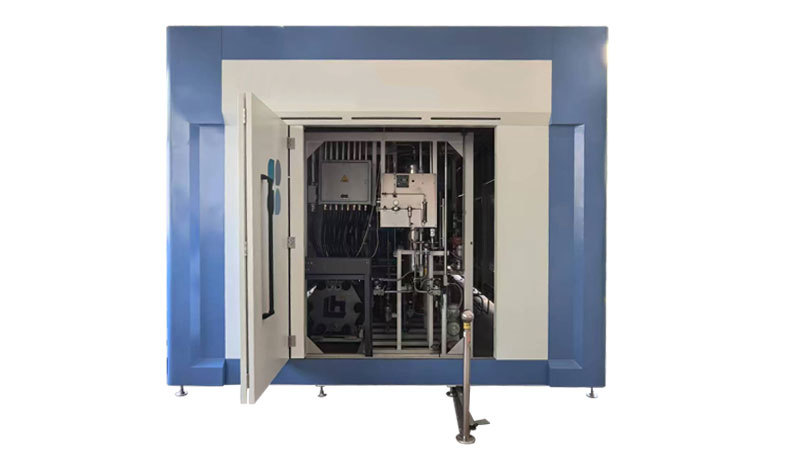

Front Door Display
PRODUCTS
Contact Us
Phone
Address
No.162 Qiyunshan 2nd Road,Jimo District,Qingdao City,Shandong,China.
Alkaline Electrolysis Hydrogen Systems
This device uses alkaline water electrolysis technology to efficiently and environmentally friendly convert pure water into pure hydrogen to power industrial applications, energy storage or transportation fuel needs.
keywords:
Category:
Alkaline Electrolysis Hydrogen Systems
Welcome to the new era of clean energy, our 10-standard water electrolysis hydrogen production equipment is the right hand to achieve sustainable energy production. This device uses alkaline water electrolysis technology to efficiently and environmentally friendly convert pure water into pure hydrogen to power industrial applications, energy storage or transportation fuel needs.

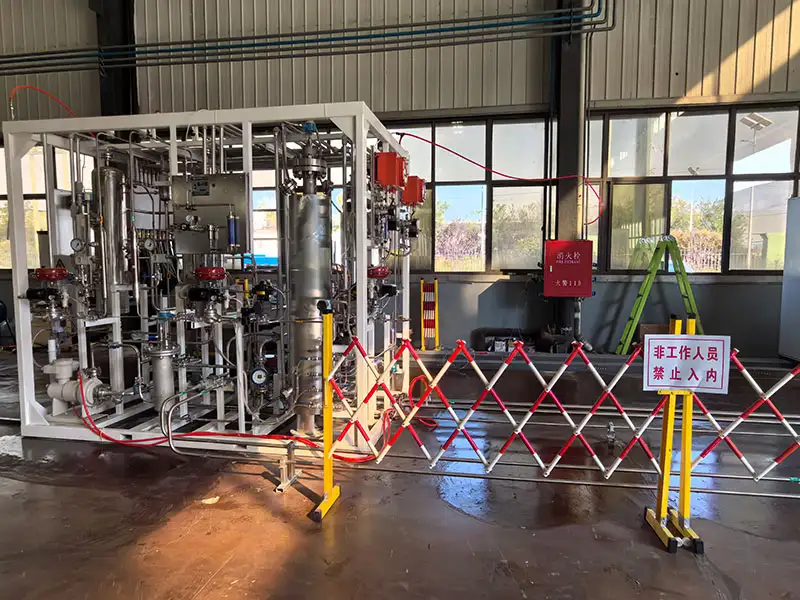

Hydrogen Production Station Box

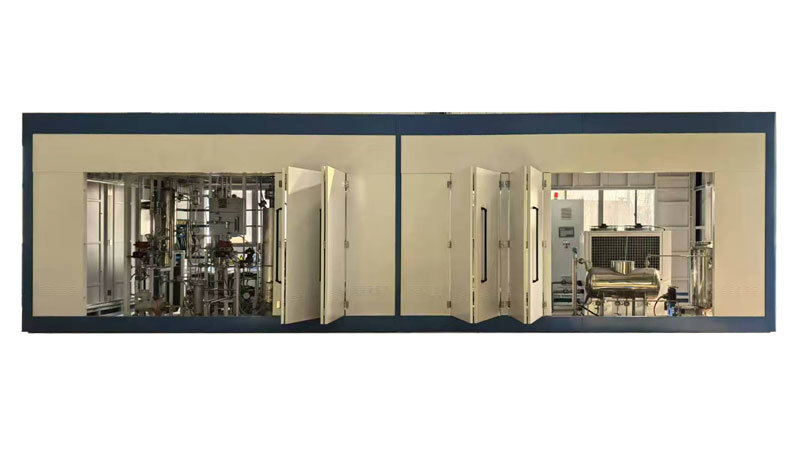

Side Door Display
Core Characteristics
High Productivity
Stable output of 10 standard square hydrogen per hour to meet the demand for small-scale hydrogen.
Technological Precedence
1. One positive and two negative electrolytic cell connection design.
2. The custom-sized runner patch protects the plate runner and prevents corrosion.
3. The compact electrode support structure effectively reduces voltage and ensures stable pertormance
4. Optimized shape design and compact skid design to meet both functional and aesthetic requirements.
Real-time Monitoring
It is equipped with an advanced detection system that can detect gas purity, flow and pressure changes in real time to ensure the stability and safety of the hydrogen production process.
Intelligent Control
To achieve full automatic operation, support manual and computer command two ways of control, users can start the device through the one-key power on function, to achieve unattended operation, reduce labor costs.
Safe and Reliable
The conventional operating pressure is 1.6MPa, equipped with multiple safety protection devices to ensure the stable operation of the equipment.
Cost Effectiveness
Optimized energy management and low maintenance costs for a higher return on investment.

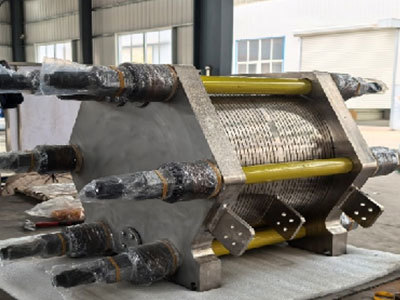

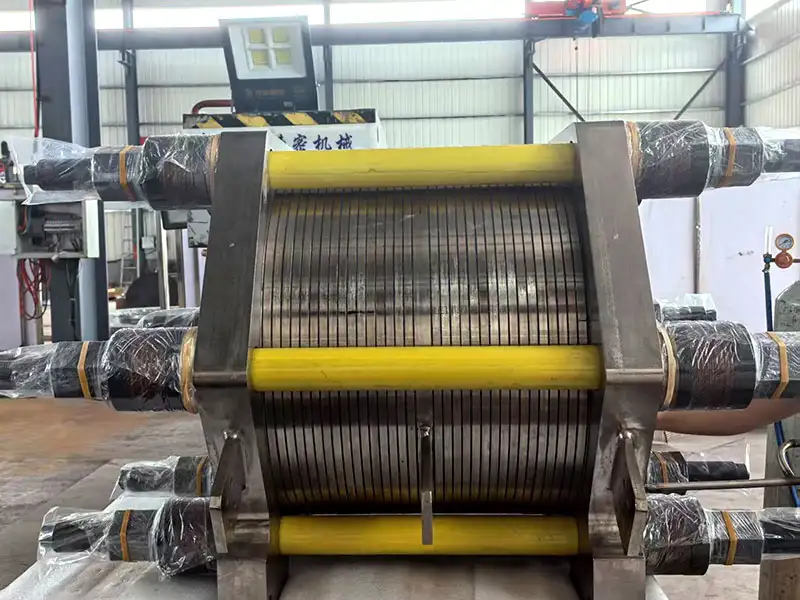

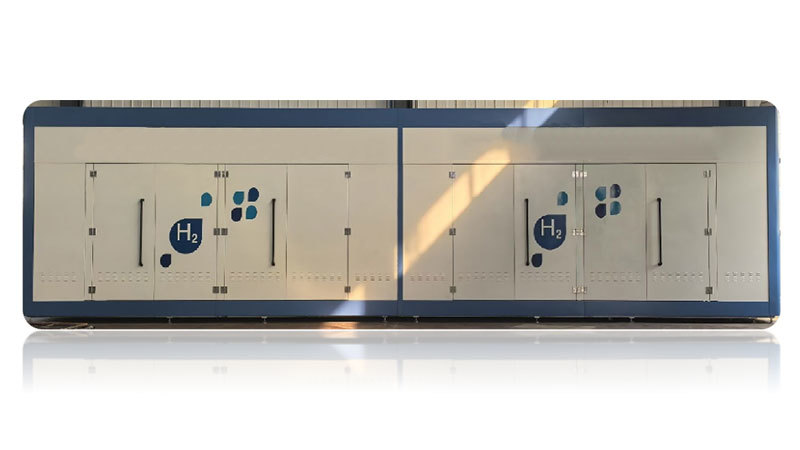

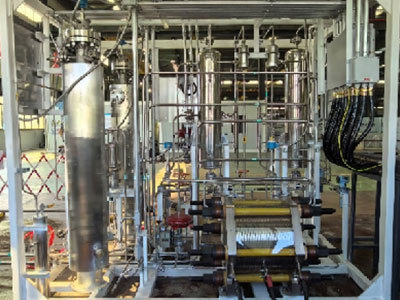

Physical Appearance

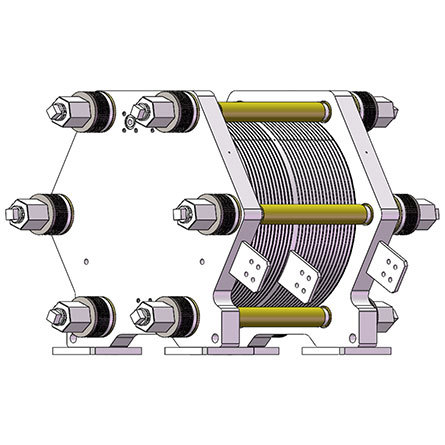

3D Model
Performance Parameters
10 standard water electrolysis hydrogen production equipment electrolytic cell Measured data
Hydrogen production Nm³/h （1 atm, 0 ℃） | 10 |
Hydrogen purity（Before purification V/V） | ≥ 99.8% |
Hydrogen purity（After purification V/V） | ≥ 99.999% |
Dew point after purification（℃） | ≤ -60 |
Equipment operating pressure（MPa） | 1.6 |
Dc power consumption（kWh/Nm³） | ≤ 4.6 |
Equipment operating current（A） | 1450 (90± 5 ℃) |
Overhaul cycle (years) | ≥ 10 |
Cell dimensions（length, width and height,mm） | 1200× 840×725 |
Product application industry
Application Cases
